超导纳米线探测器

超导纳米线探测器
    特性
  • 探测波段覆盖780nm~1600nm
  • 量子效率高达90%
  • 短恢复时间及无闩锁
  • 暗记数 < 1Hz
  • 探测时间低抖动低至20ps
  • 概述
  • 产品资料

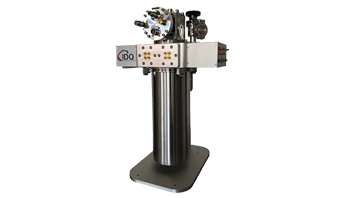

超导纳米线单光子探测器(SNSPD)利用超导材料对红外光子的响应,产生输出电压脉冲的特点,进行红外弱光信号的探测。响应波段覆盖780nm至1600nm,具有高的探测效率和极低的暗噪声。IDQ提供的超导纳米线单光子探测器系统包括控制电子学,制冷单元及相关软件,提供“Turnkey”整体解决方案,可在量子光学、量子计算、激光雷达和激光通信等领域中应用。

主要指标:

Detectors

System detection efciency

≥ 85%

Optimisaton Wavelengths

from 780 to 1625 nm

Broadband detection efficiency

> 85% over min 100 nm

Dark count rate (a,b)

10 to 100 Hz

Recovery Time (a,c)

from 30 to 60 ns

Maximum detection rate (a)

20 to 50 MHz

Jitter (FWHM) (b)

20 to 40 ps

Output pulse width, voltage

> 5 ns, > 100 mV

Design working temperature (d)

0.8 K

Detector package dimensions

13 x 20 x 25 mm

Fibre type (a)

Singlemode fbre

Cryostat

Optical and coaxial channels

1-8 (upon request)

Base temperature

0.8 K

Minimum runtime at 0.8 K (e)

24 to 100 hours, configurable

Temperature stability

0.005 K

Cooldown time

12 hours

Compressor Type

Air or water-cooled

Flexlines length

3 m (upon request)

Dimensions

-

- Cryostat

53 x 30 x 30 cm

- Compressor (air-cooled)

50 x 40 x 50 cm

a. Wavelength dependant, call for details.

b: Lower values available upon request.

c: Time for the efficiency to recover 50% of the maximum efficiency after detection.

d: The detectors can be operated at 2.5 K but the specifications are impacted. Call for details.

e: Programmed 2 hours of automatic recycling between runtime periods at 0.8K.

测试数据:

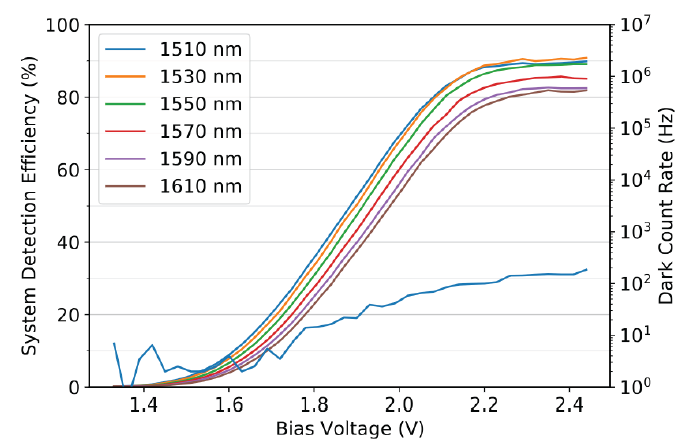

                                                                波长-探测效率-暗记数关系

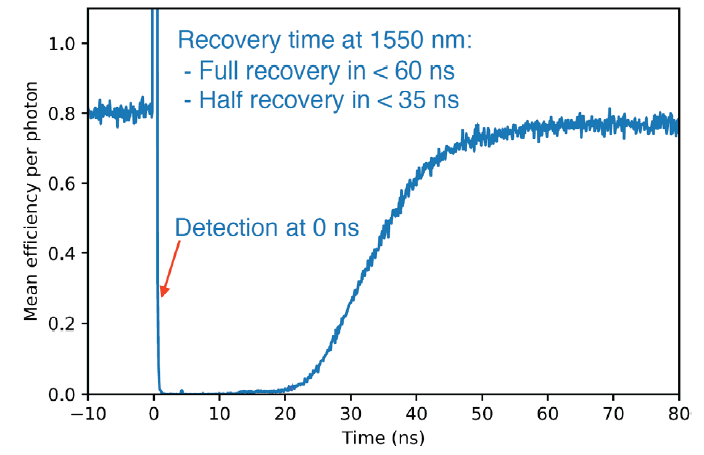

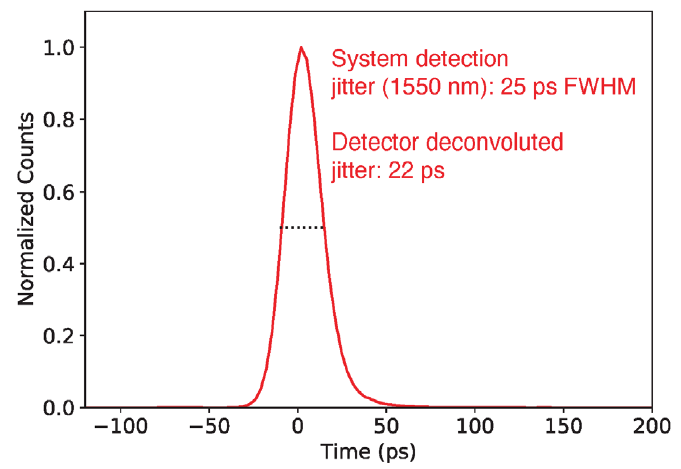

                                                                        低时间抖动和快速恢复特性
