光束分析仪

光束分析仪
    特性
  • 体积紧凑,高性价比
  • C-Mount 接口便于转接镜头及滤光片
  • 可配7寸android平板,预装软件即开即用
  • 云端数据存储分析
  • 概述
  • 产品资料

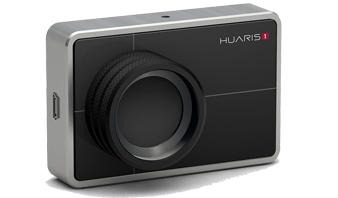

       光束分析仪利用CCD或CMOS等成像器件,配合图像处理软件对光斑特性和强度分布等信息进行分析,实现光束分析。谱线科技提供Huaris系列光束分析仪提供高性价比光束分析方案,采用金属外壳紧凑设计,通用C-Mount接口,便于转接镜头及滤光片,可选配7寸android平板,实现便携式使用,平板预装软件及预配置,即开即用,并且提供laser cloud云端服务,便于远程访问,及数据获取与分析。

主要指标:

 PARAMETERS

VALUE

Beam width parameters

FMHM,1/e2,4σ,statistical moments up to 4th
for X and Y directions independently

Fitting

Gauss ande Lorentz fit for X and Y direction independently;
Returning destribution parameters

Beam geometry

Astigmatic ande elliptical

Metrology

3 types of cursors for manual measurement

Visualization

2D & 3D

Calculation frequency

Up to 4 Hz

FPS

1-40 range with 1 fps increment

Exposure time

0.12 - 24,62 ms with 0,03 ms increment

Gain

0-100

Parameters setup mode

Auto & manual

Operation mode

Free run

Noise correction

DNC technology(c.f.User Manual for description)

ISO standards reference

ISO 11146-1,ISO 11146-2,and ISO 11146-3

Software language

English,Polish

Sensor Technology

CMOS Mono with softward lookup table
to color the beam footprint

Manufacturer

Aptina

Resolution(h×v)

752×480 px

ADC

10 bit

Color depth(camera)

8 bit

Pixel Class

WVGA

Sensor Size

1/3"

max.fps in Freerun Mode

87.2

Pixel size

6 μm

Optical Size

4.512 mm × 2.880 mm

Optical sensor diagonal

5.35 mm(1/2.99")

Camera housing

Metallic

Front port

C-mount

Fixing standard

M4

测试数据:

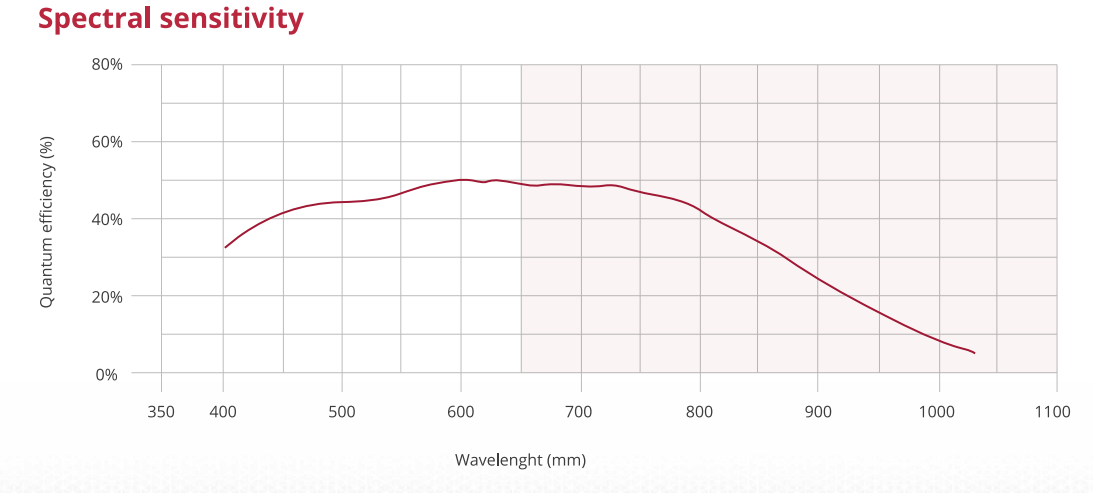

                                                                光谱相应范围
